Circular Doubly Linked List in Data Structure
A circular doubly linked list is a more complicated data structure in which each node has references to both the previous and next node. There are no NULLs in any of the nodes in a circular doubly linked list. The address of the first node of the list is included in the last node of the list. In its previous pointer, the first node in the list also contains the address of the last node.

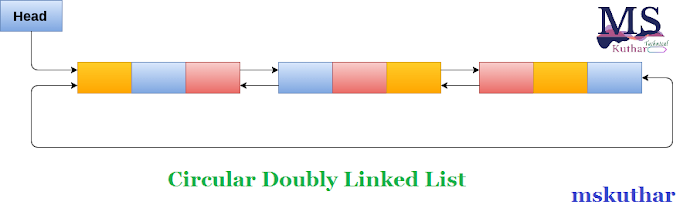

- The following diagram depicts a circular doubly linked list.
- Because a circular doubly linked list's structure is made up of three components, it requires more space per node and more costly fundamental operations.
- A circular doubly linked list, on the other hand, allows for easy manipulation of the pointers and makes searching twice as fast.
Circular Doubly linked list memory management
- The allocation of memory for a circular doubly linked list is depicted in the diagram below.
- The variable head includes the address of the list's first element, i.e. 1, therefore the list's first node contains data A, which is stored at address 1.
- Because each node of the list is expected to have three pieces, the first node of the list comprises the addresses of the last node, 8, and the following node, 4, respectively.
- As seen in the picture, the last node of the list, which is stored at address 8 and includes data as 6, carries the address of the first node of the list, which is 1.
- The last node of a circular doubly linked list is identified by the address of the first node, which is stored in the next section of the last node, therefore the node that holds the address of the first node is really the list's last node.
C program to implement all the operations on a circular doubly linked list
#include<stdio.h>
#include<stdlib.h>
struct node
{
struct node *prev;
struct node *next;
int data;
};
struct node *head;
void insertion_beginning();
void insertion_last();
void deletion_beginning();
void deletion_last();
void display();
void search();
void main ()
{
int choice =0;
while(choice != 9)
{
printf("\n*********Main Menu*********\n");
printf("\nChoose one option from the following list ...\n");
printf("\n===============================================\n");
printf("\n1.Insert in Beginning\n2.Insert at last\n3.Delete from Beginning\n4.Delete from last\n5.Search\n6.Show\n7.Exit\n");
printf("\nEnter your choice?\n");
scanf("\n%d",&choice);
switch(choice)
{
case 1:
insertion_beginning();
break;
case 2:
insertion_last();
break;
case 3:
deletion_beginning();
break;
case 4:
deletion_last();
break;
case 5:
search();
break;
case 6:
display();
break;
case 7:
exit(0);
break;
default:
printf("Please enter valid choice..");
}
}
}
void insertion_beginning()
{
struct node *ptr,*temp;
int item;
ptr = (struct node *)malloc(sizeof(struct node));
if(ptr == NULL)
{
printf("\nOVERFLOW");
}
else
{
printf("\nEnter Item value");
scanf("%d",&item);
ptr->data=item;
if(head==NULL)
{
head = ptr;
ptr -> next = head;
ptr -> prev = head;
}
else
{
temp = head;
while(temp -> next != head)
{
temp = temp -> next;
}
temp -> next = ptr;
ptr -> prev = temp;
head -> prev = ptr;
ptr -> next = head;
head = ptr;
}
printf("\nNode inserted\n");
}
}
void insertion_last()
{
struct node *ptr,*temp;
int item;
ptr = (struct node *) malloc(sizeof(struct node));
if(ptr == NULL)
{
printf("\nOVERFLOW");
}
else
{
printf("\nEnter value");
scanf("%d",&item);
ptr->data=item;
if(head == NULL)
{
head = ptr;
ptr -> next = head;
ptr -> prev = head;
}
else
{
temp = head;
while(temp->next !=head)
{
temp = temp->next;
}
temp->next = ptr;
ptr ->prev=temp;
head -> prev = ptr;
ptr -> next = head;
}
}
printf("\nnode inserted\n");
}
void deletion_beginning()
{
struct node *temp;
if(head == NULL)
{
printf("\n UNDERFLOW");
}
else if(head->next == head)
{
head = NULL;
free(head);
printf("\nnode deleted\n");
}
else
{
temp = head;
while(temp -> next != head)
{
temp = temp -> next;
}
temp -> next = head -> next;
head -> next -> prev = temp;
free(head);
head = temp -> next;
}
}
void deletion_last()
{
struct node *ptr;
if(head == NULL)
{
printf("\n UNDERFLOW");
}
else if(head->next == head)
{
head = NULL;
free(head);
printf("\nnode deleted\n");
}
else
{
ptr = head;
if(ptr->next != head)
{
ptr = ptr -> next;
}
ptr -> prev -> next = head;
head -> prev = ptr -> prev;
free(ptr);
printf("\nnode deleted\n");
}
}
void display()
{
struct node *ptr;
ptr=head;
if(head == NULL)
{
printf("\nnothing to print");
}
else
{
printf("\n printing values ... \n");
while(ptr -> next != head)
{
printf("%d\n", ptr -> data);
ptr = ptr -> next;
}
printf("%d\n", ptr -> data);
}
}
void search()
{
struct node *ptr;
int item,i=0,flag=1;
ptr = head;
if(ptr == NULL)
{
printf("\nEmpty List\n");
}
else
{
printf("\nEnter item which you want to search?\n");
scanf("%d",&item);
if(head ->data == item)
{
printf("item found at location %d",i+1);
flag=0;
}
else
{
while (ptr->next != head)
{
if(ptr->data == item)
{
printf("item found at location %d ",i+1);
flag=0;
break;
}
else
{
flag=1;
}
i++;
ptr = ptr -> next;
}
}
if(flag != 0)
{
printf("Item not found\n");
}
}
}
Expected Output:
*********Main Menu*********
Choose one option from the following list ...
===============================================
1. Insert in Beginning
2. Insert at last
3. Delete from Beginning
4. Delete from last
5. Search
6. Show
7. Exit
Enter your choice?
1
Enter Item value123
Node inserted
*********Main Menu*********
Choose one option from the following list ...
===============================================
1. Insert in Beginning
2. Insert at last
3. Delete from Beginning
4. Delete from last
5. Search
6. Show
7. Exit
Enter your choice?
2
Enter value234
node inserted
*********Main Menu*********
Choose one option from the following list ...
===============================================
1. Insert in Beginning
2. Insert at last
3. Delete from Beginning
4. Delete from last
5. Search
6. Show
7. Exit
Enter your choice?
1
Enter Item value90
Node inserted
*********Main Menu*********
Choose one option from the following list ...
===============================================
1. Insert in Beginning
2. Insert at last
3. Delete from Beginning
4. Delete from last
5. Search
6. Show
7. Exit
Enter your choice?
2
Enter value80
node inserted
*********Main Menu*********
Choose one option from the following list ...
===============================================
1. Insert in Beginning
2. Insert at last
3. Delete from Beginning
4. Delete from last
5. Search
6. Show
7. Exit
Enter your choice?
3
*********Main Menu*********
Choose one option from the following list ...
===============================================
1. Insert in Beginning
2. Insert at last
3. Delete from Beginning
4. Delete from last
5. Search
6. Show
7. Exit
Enter your choice?
4
node deleted
*********Main Menu*********
Choose one option from the following list ...
===============================================
1. Insert in Beginning
2. Insert at last
3. Delete from Beginning
4. Delete from last
5. Search
6. Show
7. Exit
Enter your choice?
6
printing values ...
123
*********Main Menu*********
Choose one option from the following list ...
===============================================
1. Insert in Beginning
2. Insert at last
3. Delete from Beginning
4. Delete from last
5. Search
6. Show
7. Exit
Enter your choice?
5
Enter item which you want to search?
123
item found at location 1
*********Main Menu*********
Choose one option from the following list ...
============================================
1. Insert in Beginning
2. Insert at last
3. Delete from Beginning
4. Delete from last
5. Search
6. Show
7. Exit
Enter your choice?
7
